Creating a Custom Import Template and Importing

Creating a Custom Import Template and Importing

Here are items you will need before you can begin this process:
  1. An Excel file, with the data you want to import
  2. The appropriate defines sheet, attached to the bottom of this article, for the import type you're completing

The below steps are the process to load the data. In these screen shots, I am importing fuel for a vendor that does not have a hot button. The same steps can be followed for passengers, personnel, costs.

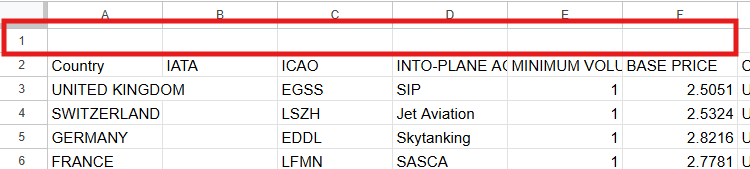

1. Take the data file you have, create a new row at the top, above the row headers already on the sheet.

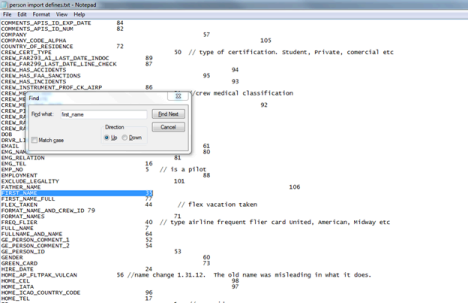

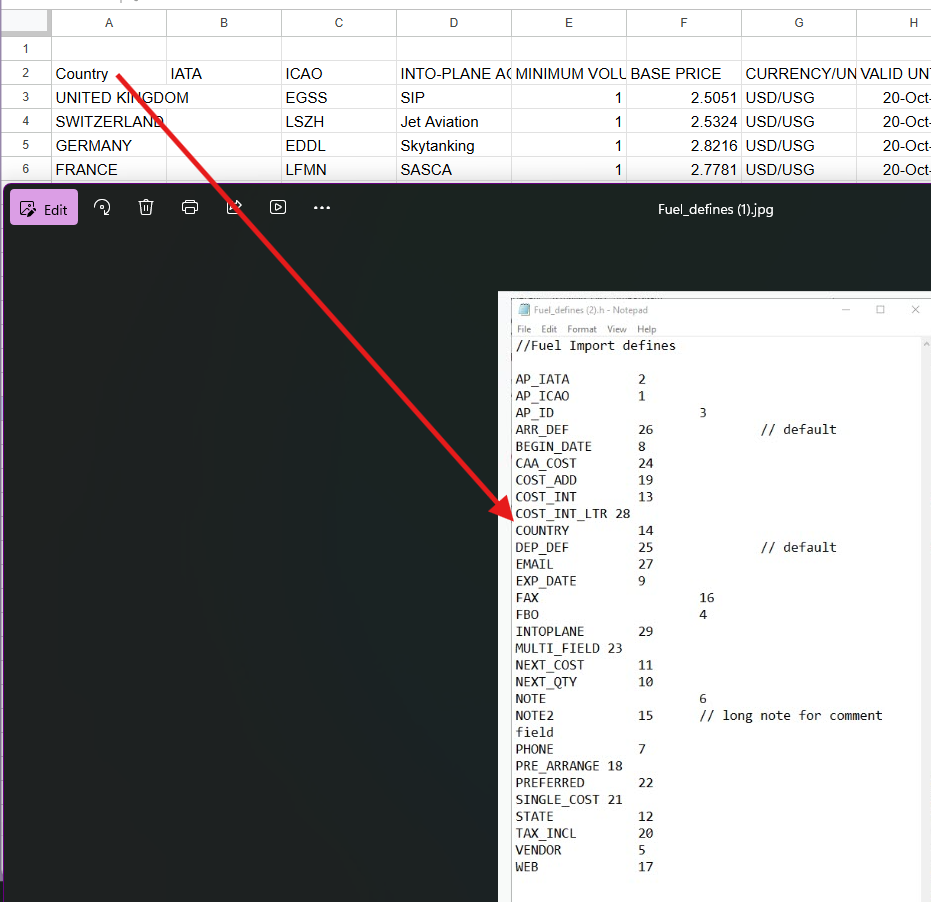

2. Look at the column on your data sheet and find the corresponding Code # in the defines file, for each appropriate column. There are lots of similar fields, so be sure yours is unique.  You can use Ctrl F to "find" the code names.

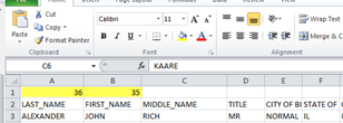

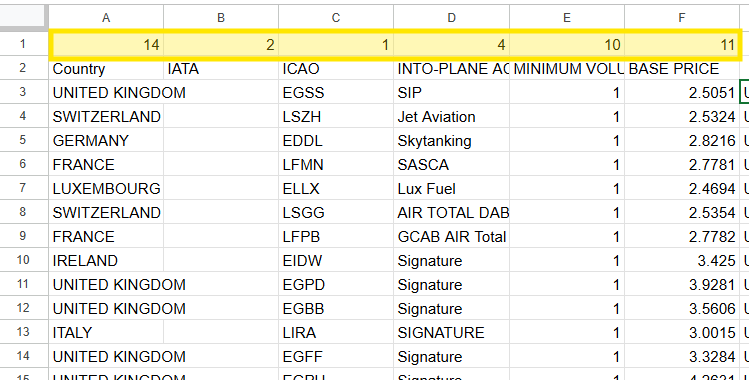

3. Put the corresponding define number at the top of each column, in row 1.
NOTE:  Use 999 for Unusable or Blank Columns

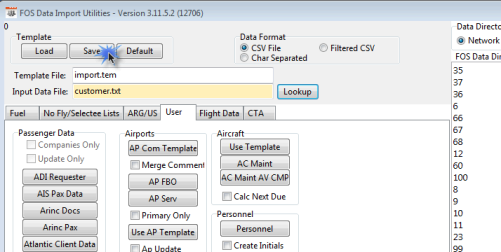

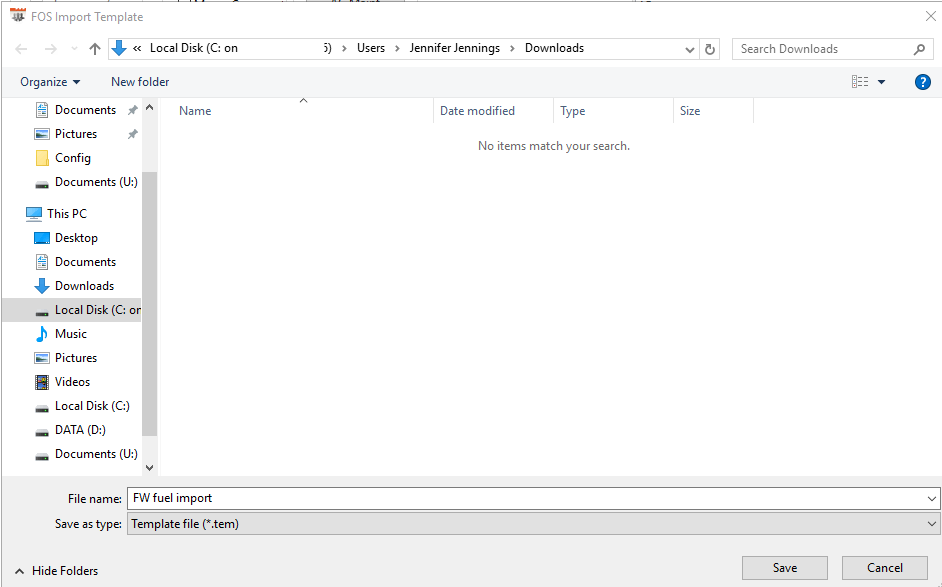

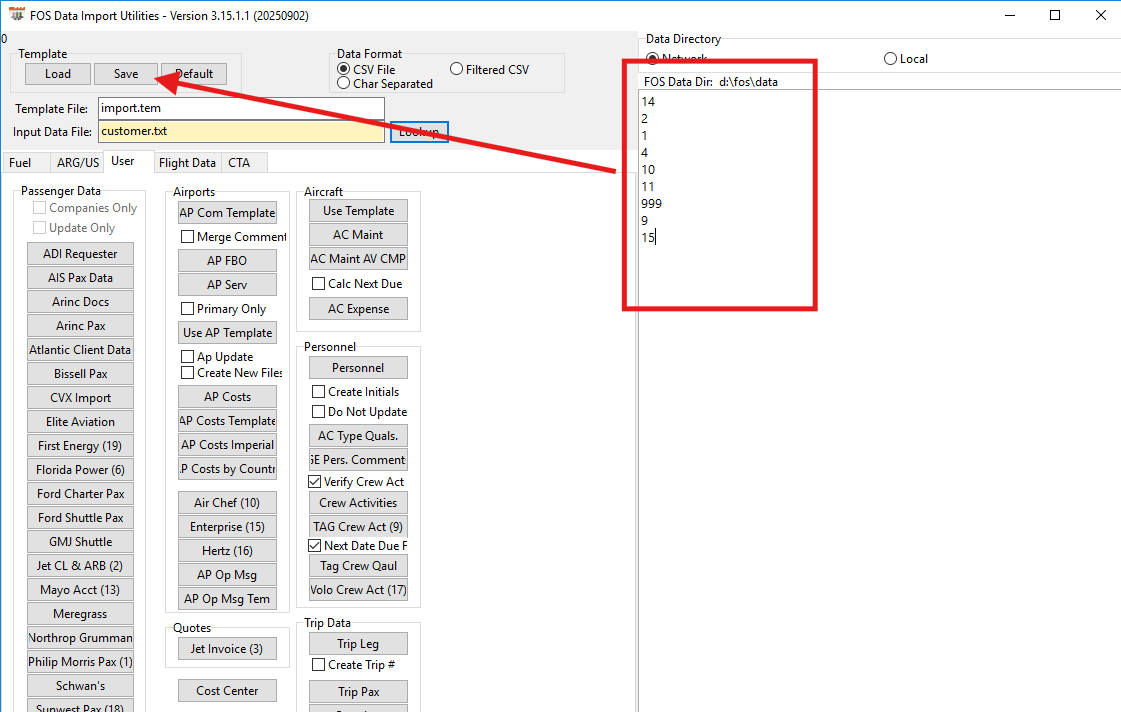

4. Go to the Import Utility and clear everything out of the right side window and start typing all of the codes you have added into the data sheet using one line per code. Then choose save. Name the template, save as a .tem file type.
NOTE:  Use 999 for Unusable or Blank Columns

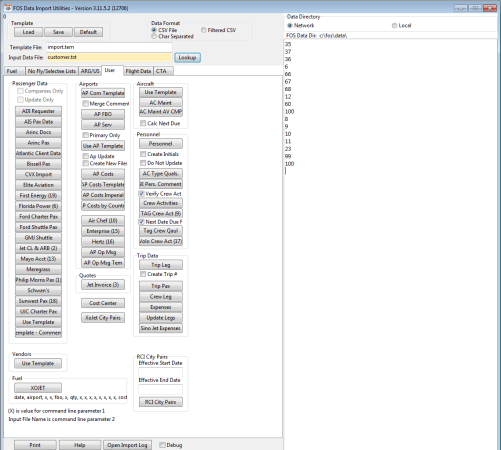

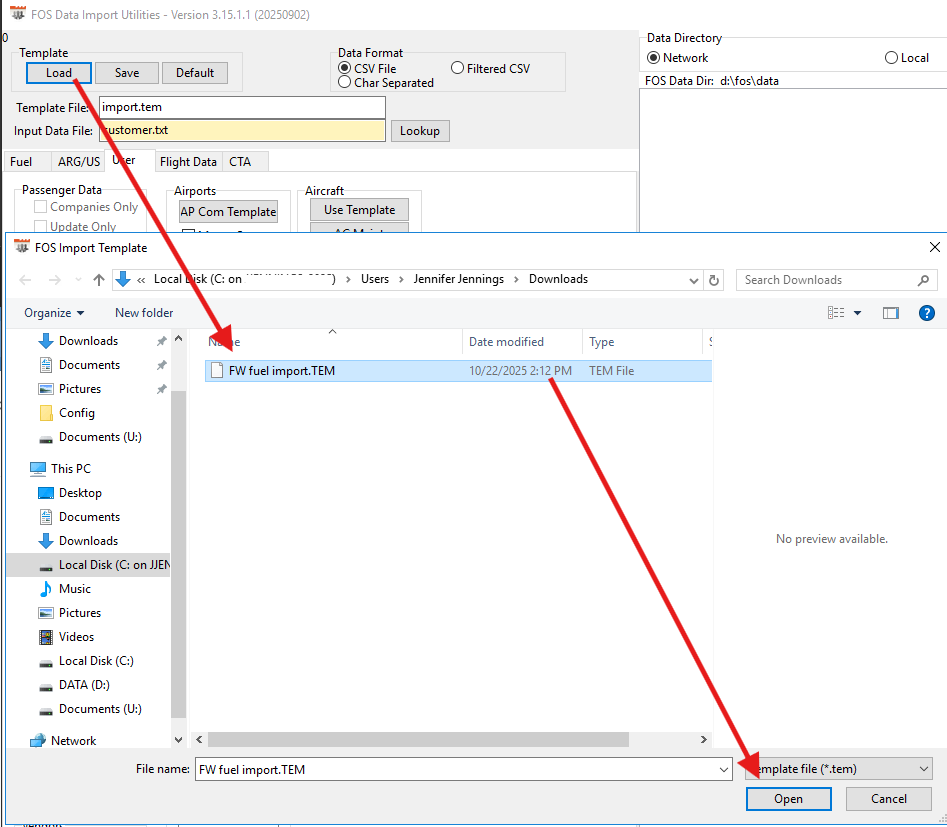

5. Load the template



6. Delete the top 2 rows of the data sheet (template number and column headers) and save to .csv formatting.
  1. If the data sheet has multiple pages, make additional documents instead of tabs/pages.

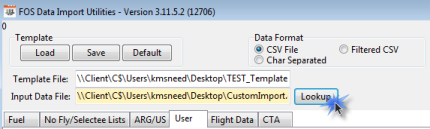

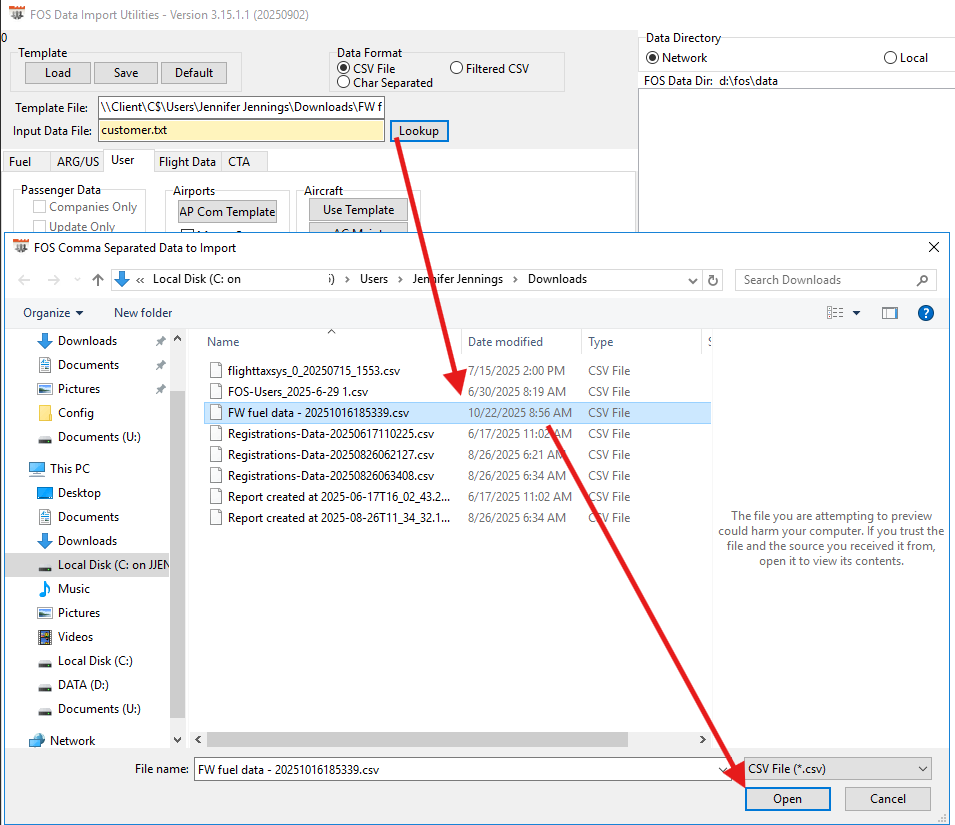

7. Lookup and load the saved .csv data file

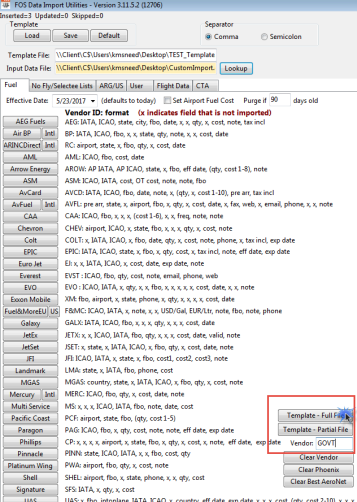

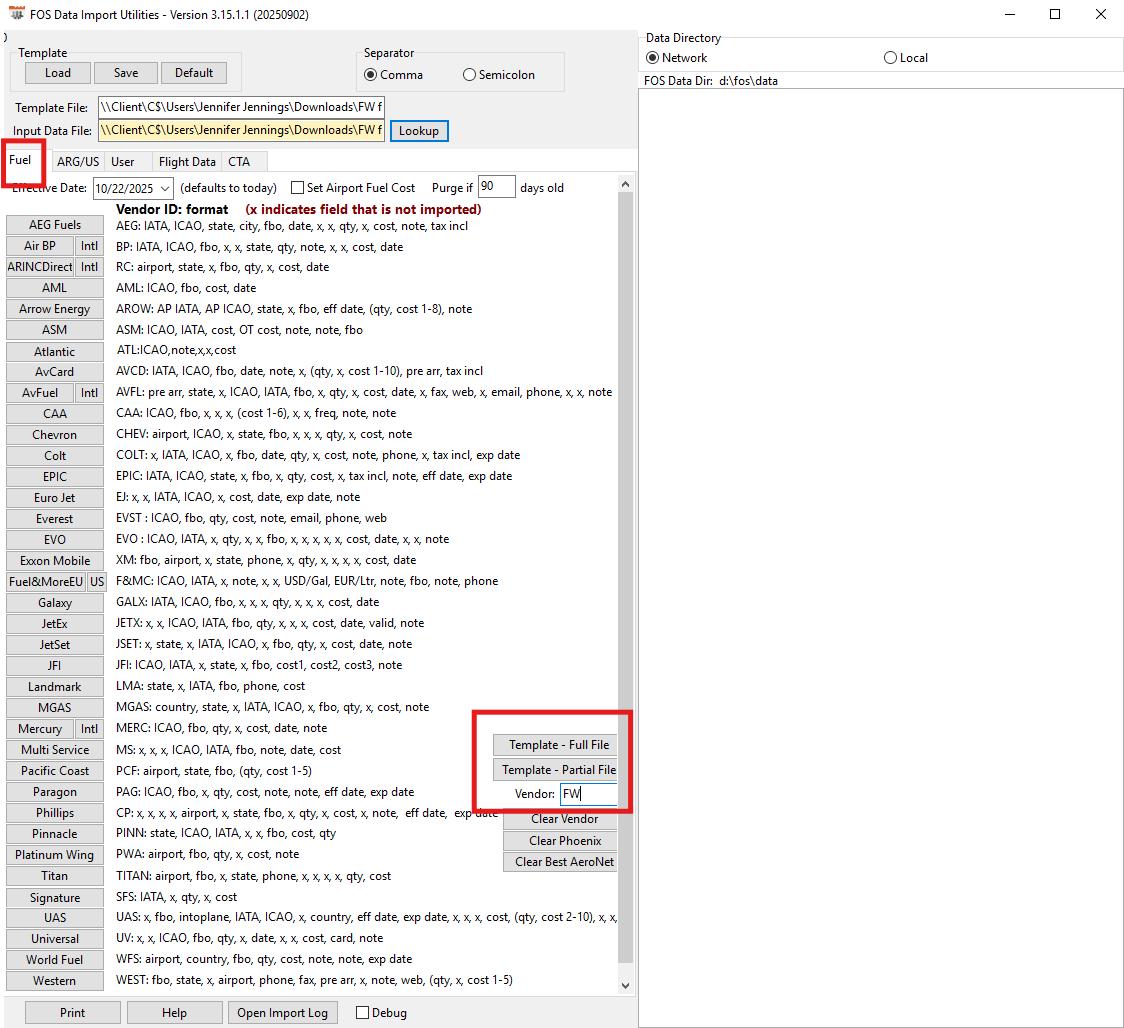

8. For custom fuel vendors that do not have a hot button on the left, select the Template-Full File option on the fuel tab, and add the vendor ID. Once the process is done, "DONE" will be shown at the top.

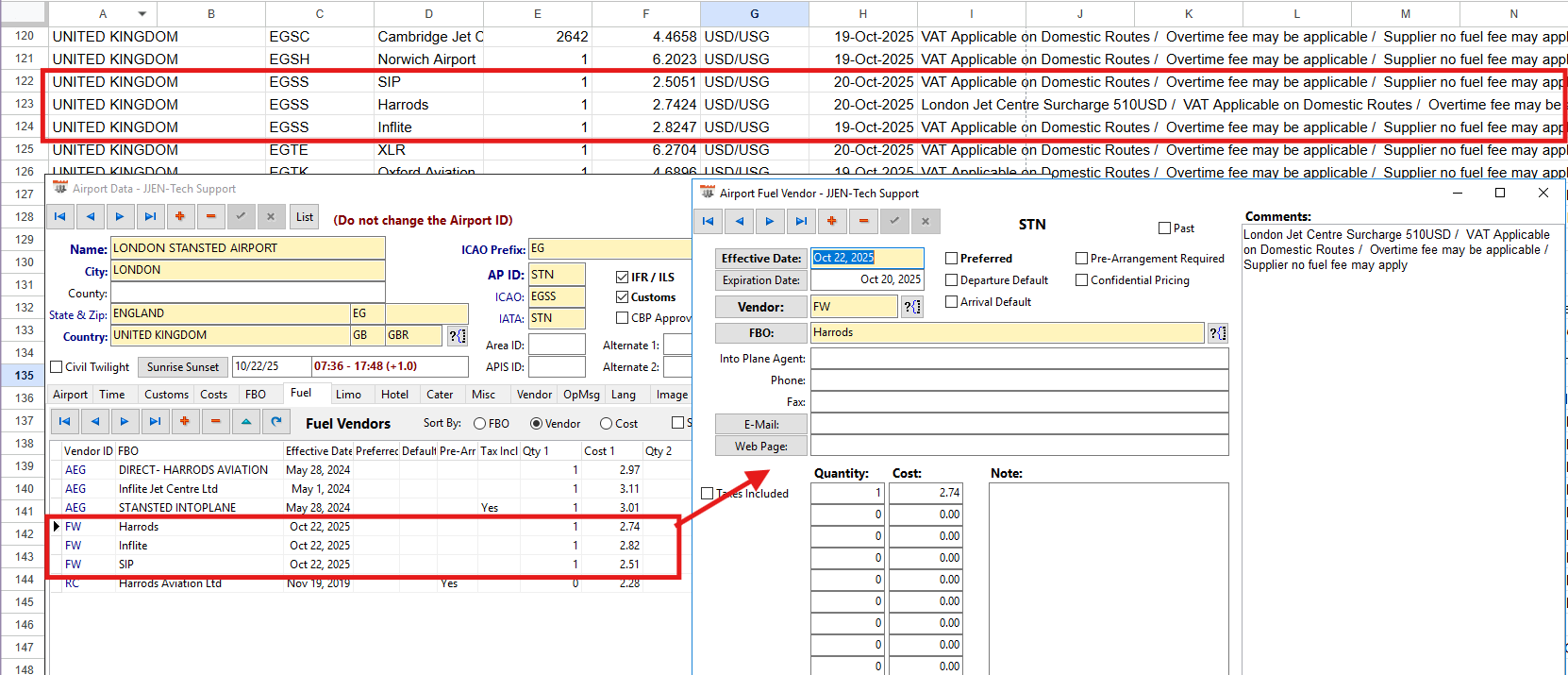

**you can then see the fuel entries into the airport records

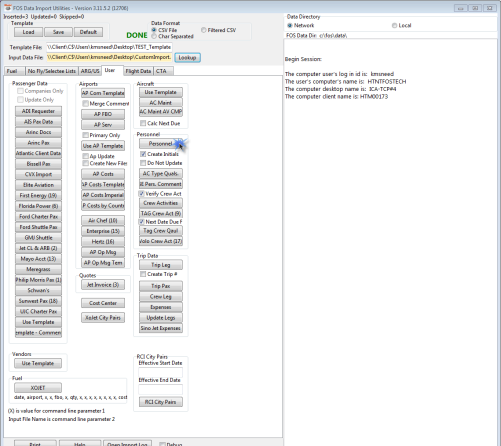

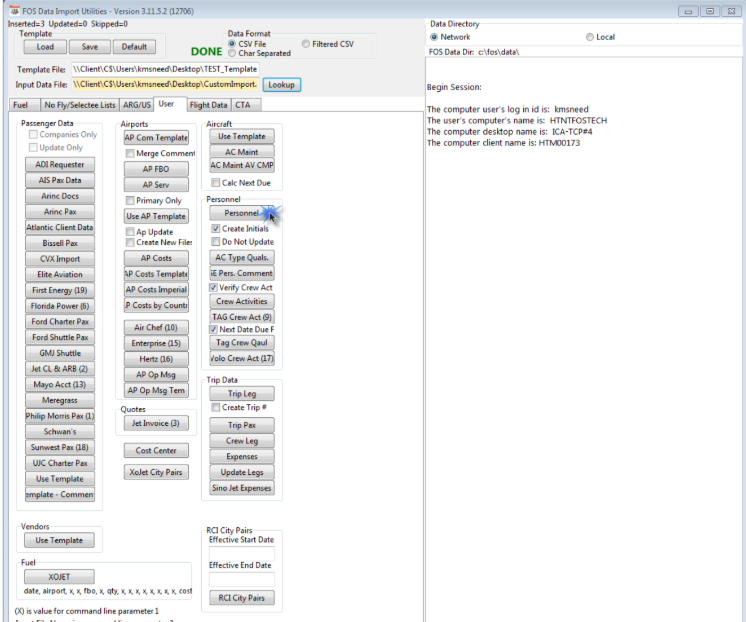

** Depending on the import you are completing, the button may be on the User tab . If you are importing Personnel, use the Personnel button to import once steps 1-7 are complete.
