Interfaces Tab - Charter

This section allows the user to define what information may be imported and exported to various third party charter tools.

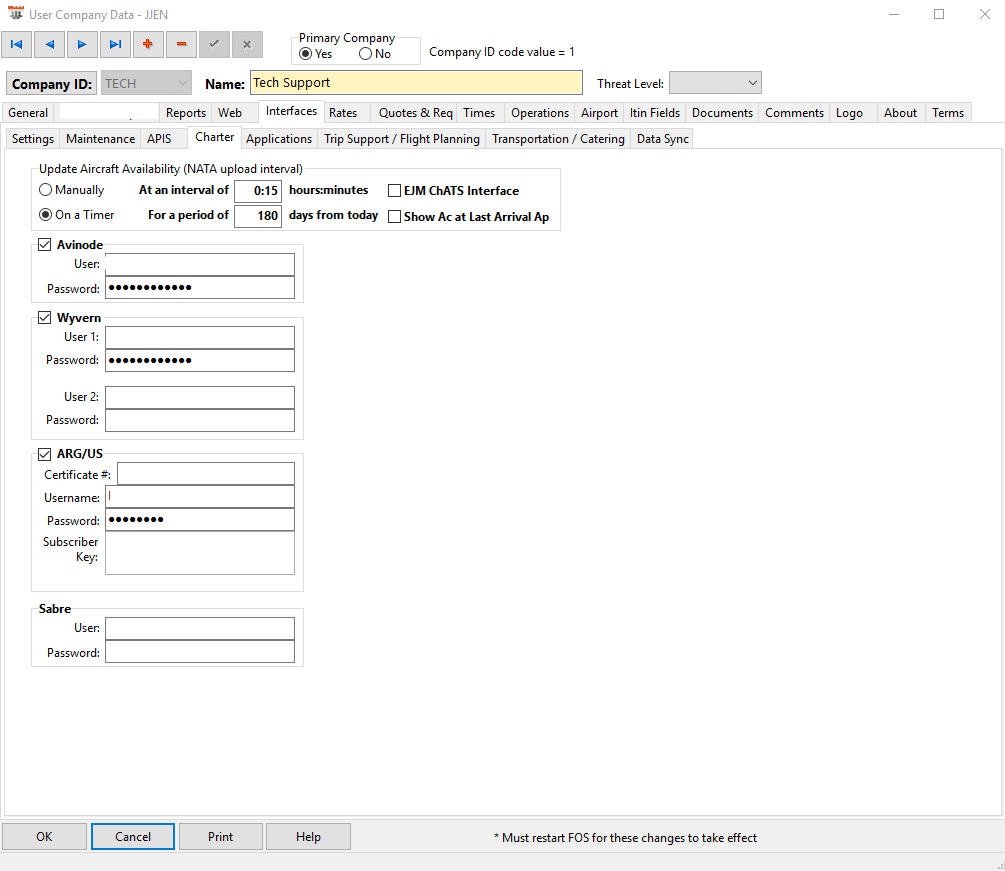

(Main View of Interfaces Tab - Charter)

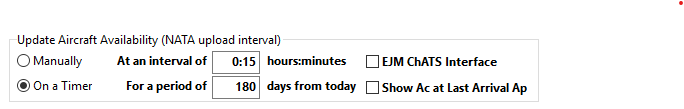

"Update Aircraft Availability (NATA upload interval)" Section

Manually - This setting will require users to manually run and select update on the FOSAvailability application (FOSAvail.exe).

On a Timer - The FOSAvailability application will automatically update availability when it is started and continues to run in the background. This application is usually set to run on the sever designated to run the interface manager.

At an interval of  X hours : minutes - This setting defines the interval at which the FOSAvailbility program will update.

For a period of  X days from today - This setting limits how many days in the future will be pushed to the availability program.

EJM ChATS Interface - Checking this box allows the user to push aircraft availability to EJM. The user will need to define which aircraft should submit availability in the individual aircraft records.

Show Ac at Last Arrival Ap
- This setting will show availability at the last arrival airport instead of the next aircraft destination.

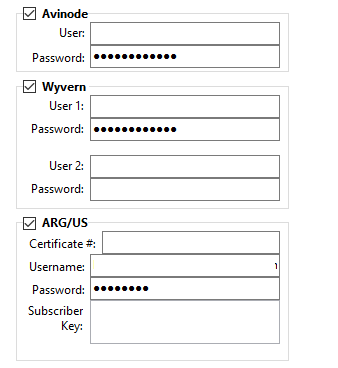

"Avinode, Wyvern, and ARG/US" Section

Avinode - Adding the FOS integration credentials, provided by Avinode, will activate the integration. The settings In the Update Aircraft Availability (NATA upload interval) section apply to this interface.

Wyvern- Adding the FOS integration credentials, provided by Wyvern, will activate the integration. The frequency for this integration can be found on the Interfaces Tab - Setting.

ARG/US - Adding the FOS integration credentials, provided by ARG/US, will activate the integration. The frequency for this integration can be found on the Interfaces Tab - Setting.
