Introduction to the Aircraft Module

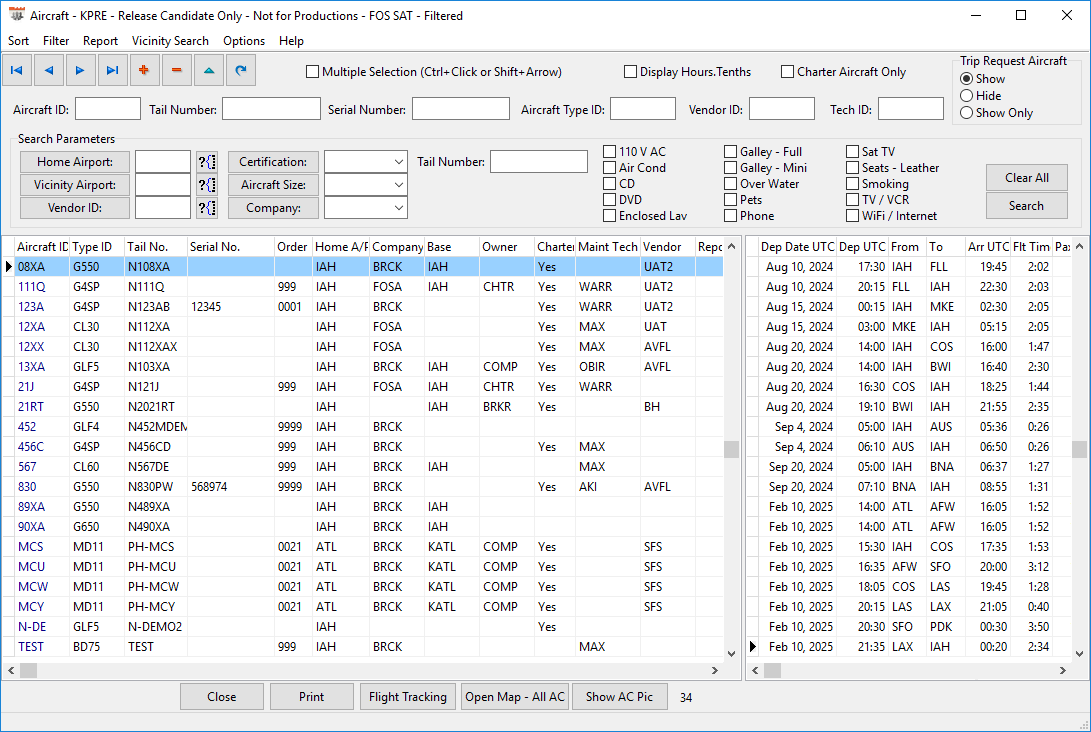

The aircraft list displays a listing of all aircraft entered into the program.

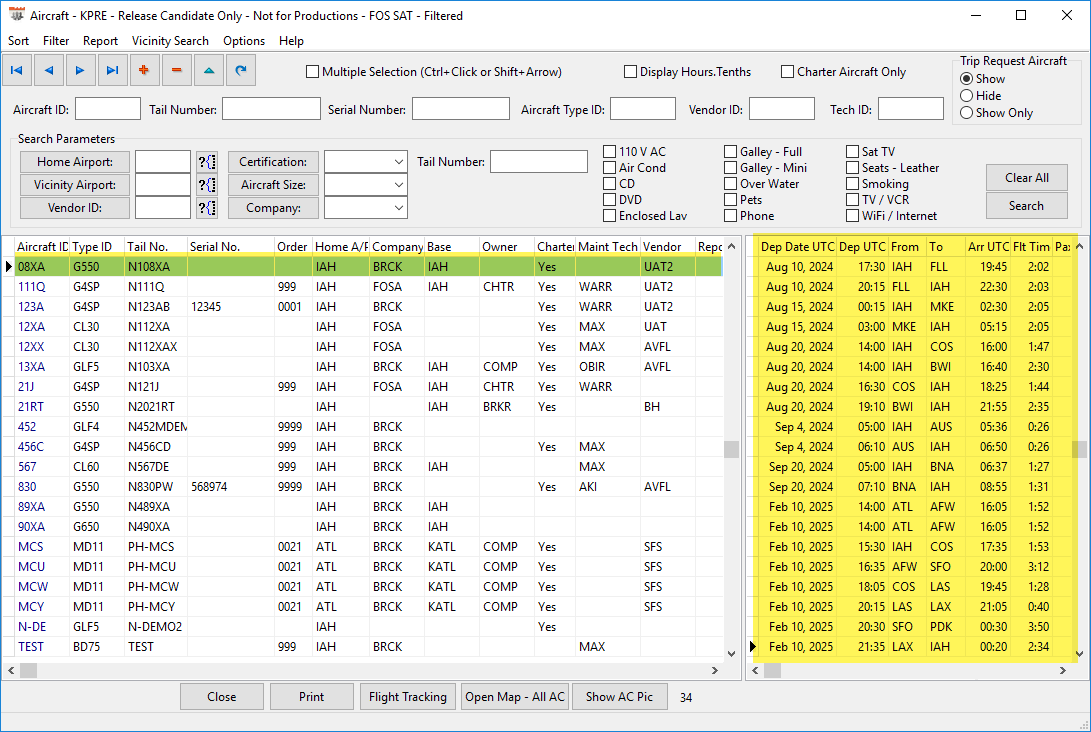

Aircraft highlighted on the list will display a list of legs scheduled to particular aircraft. The leg list will display on the right hand pane.
To view a picture of the aircraft you must first open the AC Record and upload one under the "Picture" Tab using the "Look Up" Button:

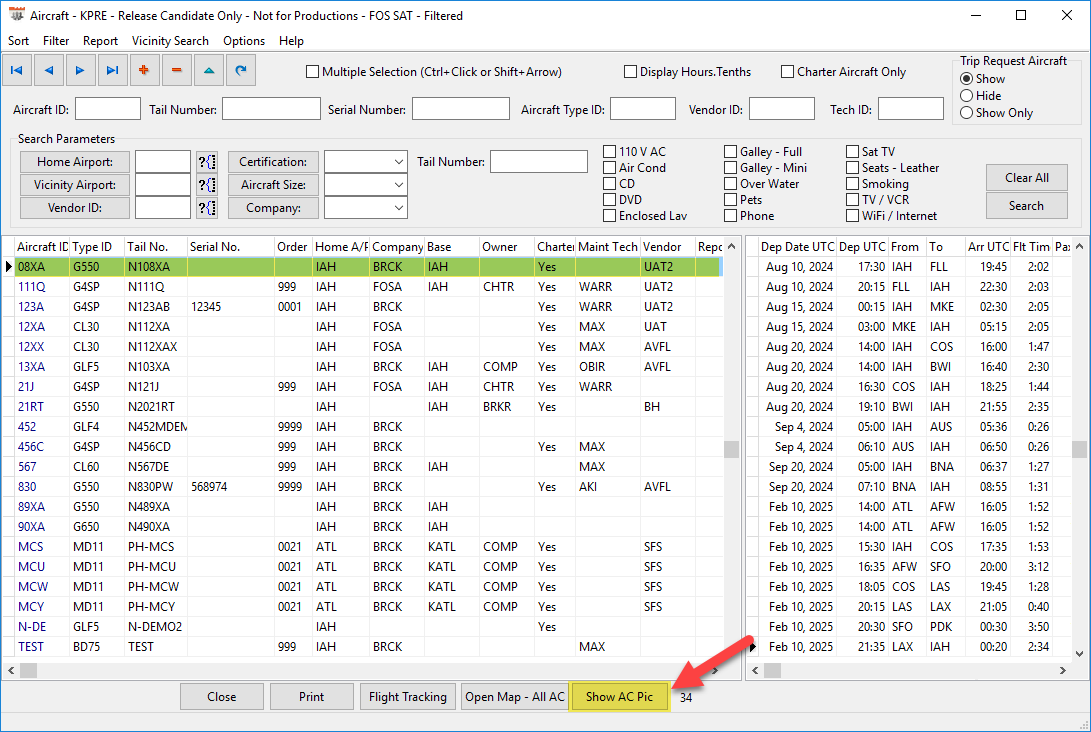

Then you highlight the Aircraft from the list and select the "Show AC Pic" button while on the record:

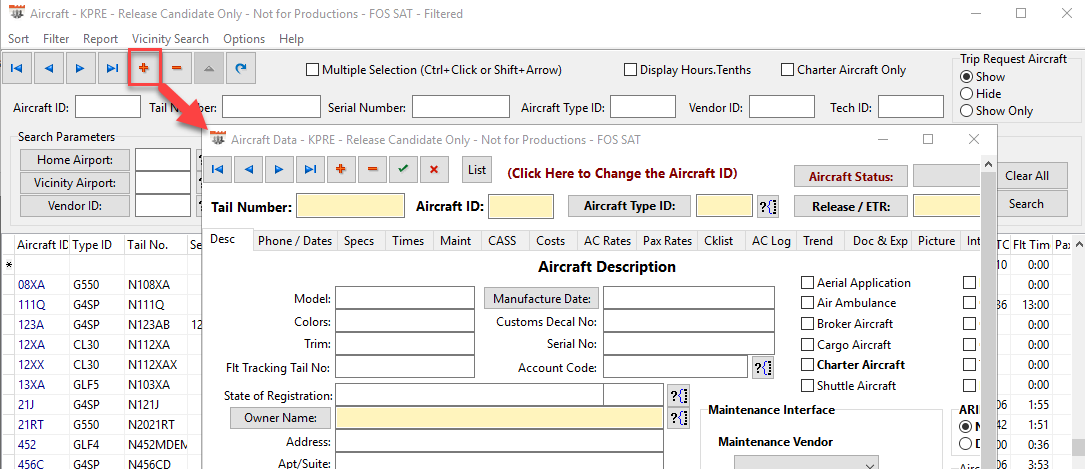

To add a new aircraft record, select the "+" button. A new aircraft record will open, ready for population:
